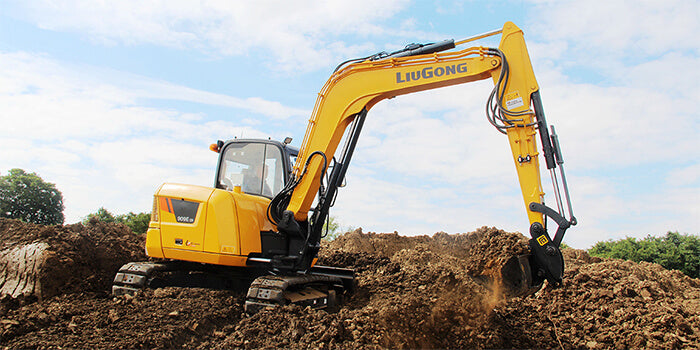

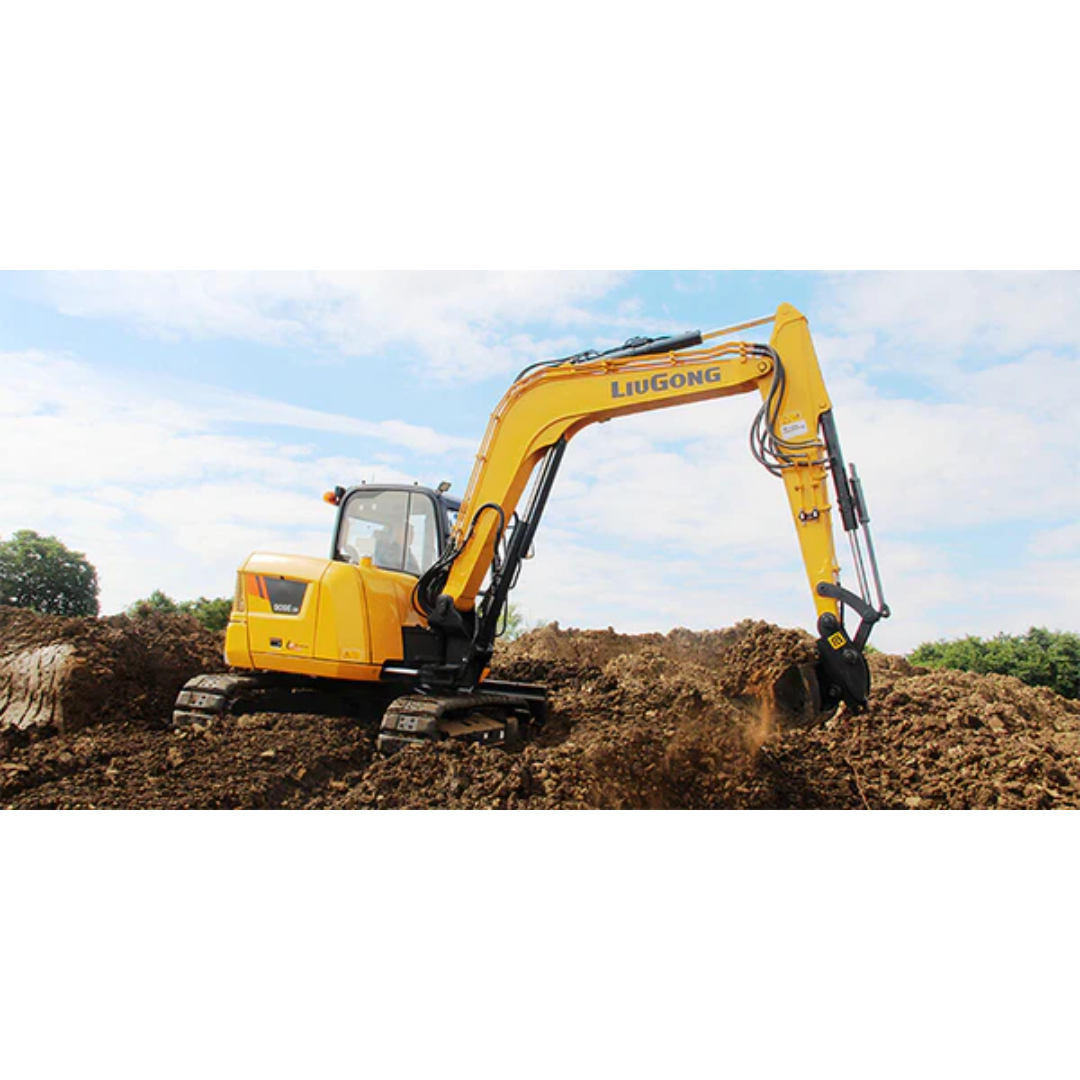

9 Ton Digger Hire / Excavator - Liugong

9 Ton Digger Hire / Excavator - Liugong: The 909ECR model features a short tail swing design. On this model, if you are working in a confined space the short tail swing ensures safe and easy operation within a confined space. The fuel efficient, Stage V / Tier 4F certified Yanmar 4TNV98C-SLY engine provides proven and reliable power. The hydraulic system provides a load sensing and flow sharing capability leading to operational precision, efficient performance and greater controllability. When it works alongside obstacles, the swing post and cylinder stay within the tracks when in an offset position, so that you can avoid the risk of damage to your machine. The float function can be enabled with a toggle switch on the right side of the control panel. Because you don’t have to adjust the blade height during travel, clean-up and backfilling will be easier.

Weight: 8.7t

Transport length: 6.46m

Transport width: 2.4m

Transport height: 2.73m

Bucket capacity: 0.28m²

Track width: 450mm

Boom: MB

Max reach horizontal: 6.85m

Dredging depth: 4.09m

Tear-out force: 63 kN

Bucket width: 0.77m

Model series: E

Engine manuf: YANMAR

Engine type: 4TNV98C

Engine power: 44 kW

Displacement: 3.3 l

Revolutions at max torque: 2200 rpm

Max Torque: 241/1430 Nm

No. of cylinders: 6

Cylinder bore x stroke: 98x110 mm

Emission level: Tier 4/ EU IIIB
