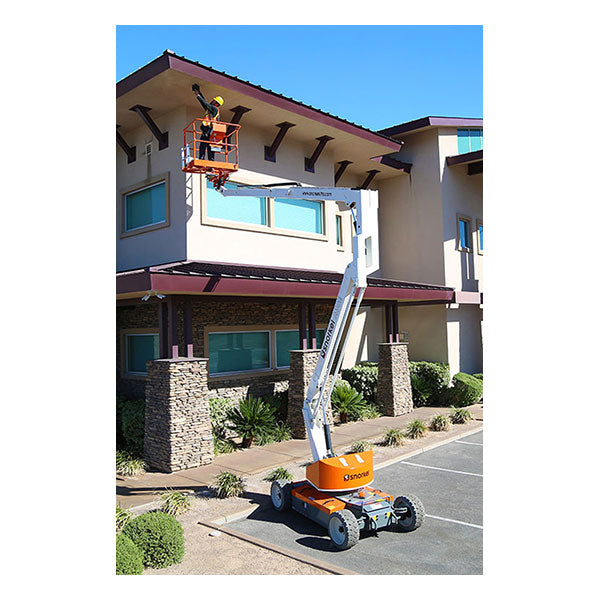

Boom Lift Hire | Battery Powered 13.5m Snorkel A38E: The SNORKEL A38E is a self-propelled lift that is lightweight, reliable, and ideal for both indoor and outdoor use with its compact dimensions and an articulating/telescopic boom configuration for maximum maneuverability and versatility. The SNORKEL A38E is a self-propelled lift that is lightweight, reliable, and ideal for both indoor and outdoor use with its compact dimensions and an articulating/telescopic boom configuration for maximum maneuverability and versatility.


  • Max. working height: 13.5 m
  • Max. platform height: 11.5 m
  • Max. working outreach: 6.1 m
  • Clearance height at max outreach: 5.4 m
  • Platform size: 0.69 m x 1.11 m
  • Overall width: 1.5 m
  • Overall length: 4.1 m
  • Stowed height: 2.0 m
  • Ground clearance: 120 mm
  • Platform capacity (SWL): 215 kg
  • Max. drive height: 11.5 m
  • Max. wind speed: 12.5 m/s
  • Max. drive speed (stowed): 4.0 m/h
  • Max. drive speed (elevated) forward: 0.5 km/h
  • Max. drive speed (elevated) reverse: 0.4 km/h
  • Platform rotation: 90° (+45° / −45°)
  • Turret rotation: 360° non-continuous
  • Tailswing (elevated): 0 m
  • Tailswing (stowed): 1.4 m
  • Raise / lower time: 83 / 68 sec
  • Gradeability: 36%
  • Inside turning radius: 1.12 m
  • Outside turning radius: 2.4 m
  • Tyres: 22 x 9 16 non-marking rubber
  • Controls: Proportional
  • Drive system: Direct drive DC
  • Power source: 8 x 6 V, 220 Ah batteries
  • Battery charger: 100–200 V / 15 A
  • Weight: 3,880 kg
