Boom Lift Hire | Diesel Powered 16 M Haulotte HA16
Boom Lift Hire | Diesel Powered 16 M Haulotte HA16
SKU:DBOOM
Fuel Policy
Fuel Policy
Diesel :All diesel equipment is supplied with a full tank of marked gas oil. Fuel usage will be charged at the end of the hire period.
Petrol :Due to regulations, petrol equipment is supplied without fuel and no fuel charges apply.
Off Hire Policy
Off Hire Policy
Your hire period begins the moment the equipment is received and is billed in 24-hour periods.
To officially end your hire ("off-hire"), please call or email us.
Partial off-hires that split the return delivery will be charged separately.

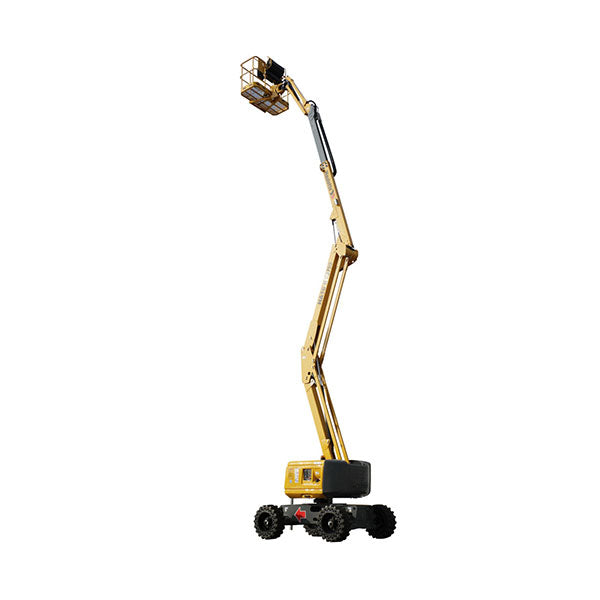

Boom Lift Hire | Diesel Powered 16 M Haulotte HA16: The Haulotte HA16 RTJ Pro self-propelled articulating boom provides excellent versatility with a combination of up, out and over positioning capabilities and an outreach that is second to none. With a platform height of 45ft, a working height of 51ft and an outreach of 27ft the Haulotte HA16 RTJ PRO is ideal for outdoor construction and industrial applications.
| Working height | 16 m |
| Platform height | 14 m |
| Horizontal outreach | 8.3 m |
| Up and over clearance | 7.65 m |
| Lift capacity | 230 kg (2 pers.) |
| Platform size | 1.83 x 0.80 m |
| Length - stowed | 6.75 m |
| Width | 2.3 m |
| Height - stowed | 2.3 m |
| Storage / transport length | 5.05 m |
| Storage / transport height | 2.4 m |
| Vertical jib rotation | 140° (- 80° / + 60°) |
| Platform rotation | 165° (- 75° / + 90°) |
| Turntable rotation | 360° continuous |
| Tailswing | 10 cm |
| Wheelbase | 2.1 m |
| Ground clearance | 37 cm |
| Tilt | 5 ° |
| Drive speed | 5.2 km/h |
| Maximum wind speed rating | 45 km/h |
| Gradeability | 40 % |
| Tires - solid rough terrain | 830 x 285 mm |
| Turning radius - outside | 3.75 m |
| Power source | Kubota, TIER 4 final, Stage V, V1505 E4B / 18,5 kW |
| Weight | 6 540 kg |
