Boom Lift Hire | Diesel Powered 20 M Haulotte HA20
Boom Lift Hire | Diesel Powered 20 M Haulotte HA20
SKU:DBOOMA65
Hire Terms
Hire Terms
Standard hire: Your hire begins when you receive the equipment and is charged in 24-hour periods.
Diesel equipment: Supplied with a full tank of marked gas oil. Any fuel used will be charged at the end of the hire.
Petrol equipment: We do not store or supply petrol, so petrol equipment is supplied without fuel and no fuel charge applies.
Ending your hire: Please call us to place the equipment “off-hire”. If equipment is returned across multiple collections, each collection will be charged separately.

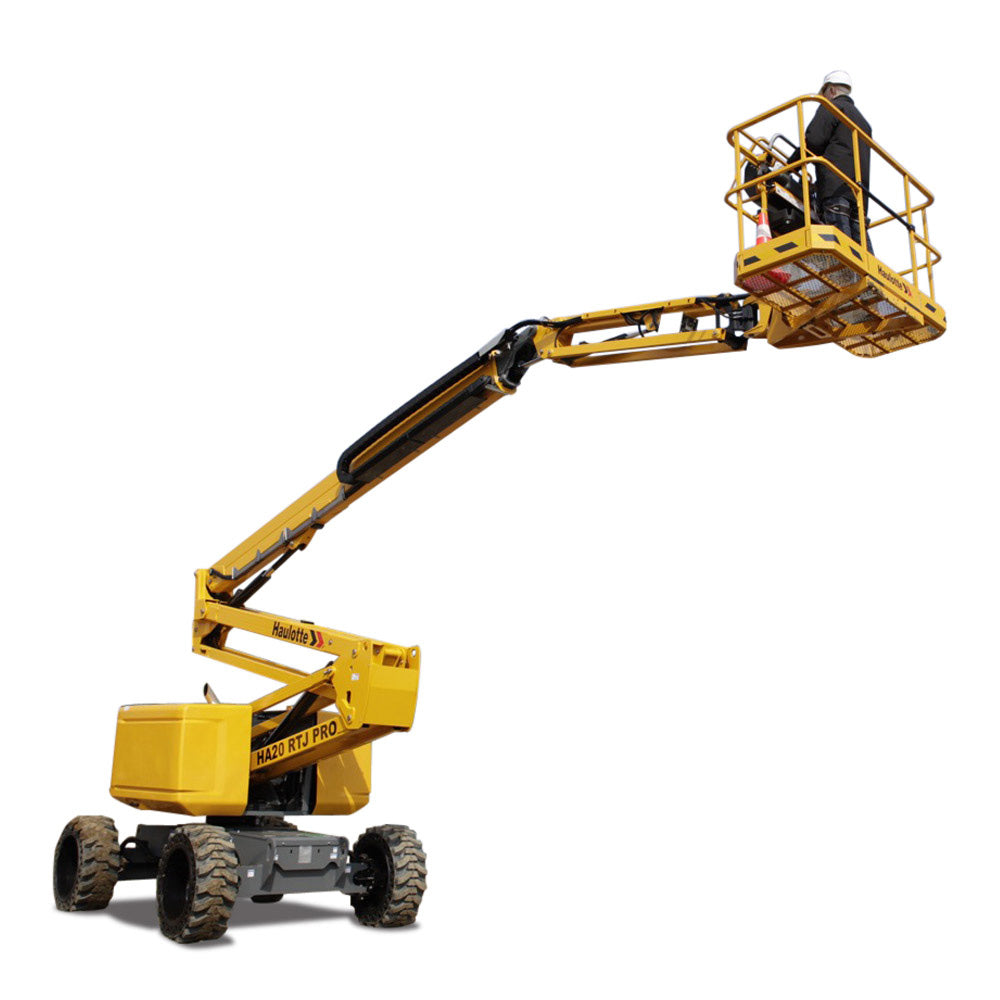

Boom Lift Hire | Diesel Powered 20 M Haulotte HA20: The HA20 RTJ PRO articulating boom lift is ideal for most outdoor all-terrain applications with its rugged design and smart features including fully proportional and simultaneous controls, 4 wheel steer and continuous 360 degree rotational movement.
| Working height | 20.5 m |
| Platform height | 18.5 m |
| Horizontal outreach | 11.9 m |
| Up and over clearance | 8.5 m |
| Lift capacity | 250 kg (2 pers.) - option 350 kg |
| Platform size | 1.80 x 0.80 m |
| Length - stowed | 8.60 m |
| Width | 2.43 m |
| Height - stowed | 2.47 m |
| Storage / transport length | 6.16 m |
| Storage / transport height | 2.98 m |
| Platform rotation | 180° (+90° / -90°) |
| Turntable rotation | 360° continuous |
| Tailswing | 42 cm |
| Wheelbase | 2.5 m |
| Ground clearance | 36 cm |
| Tilt | 4° - option 6° |
| Drive speed | 0.5 - 5 km/h |
| Maximum wind speed rating | 45 km/h |
| Gradeability | 45 % |
| Tires - solid rough terrain | 910 x 355 mm |
| Turning radius - outside | 3,7 m |
| Power source | KUBOTA, TIER 4 final : Stage V, China IV, Diesel: 18.5 kW |
| Weight | 9430 |
