Boom Lift Hire | Electric 10M Star10
Boom Lift Hire | Electric 10M Star10
SKU:STAR10
Fuel Policy
Fuel Policy
Diesel :All diesel equipment is supplied with a full tank of marked gas oil. Fuel usage will be charged at the end of the hire period.
Petrol :Due to regulations, petrol equipment is supplied without fuel and no fuel charges apply.
Off Hire Policy
Off Hire Policy
Your hire period begins the moment the equipment is received and is billed in 24-hour periods.
To officially end your hire ("off-hire"), please call or email us.
Partial off-hires that split the return delivery will be charged separately.

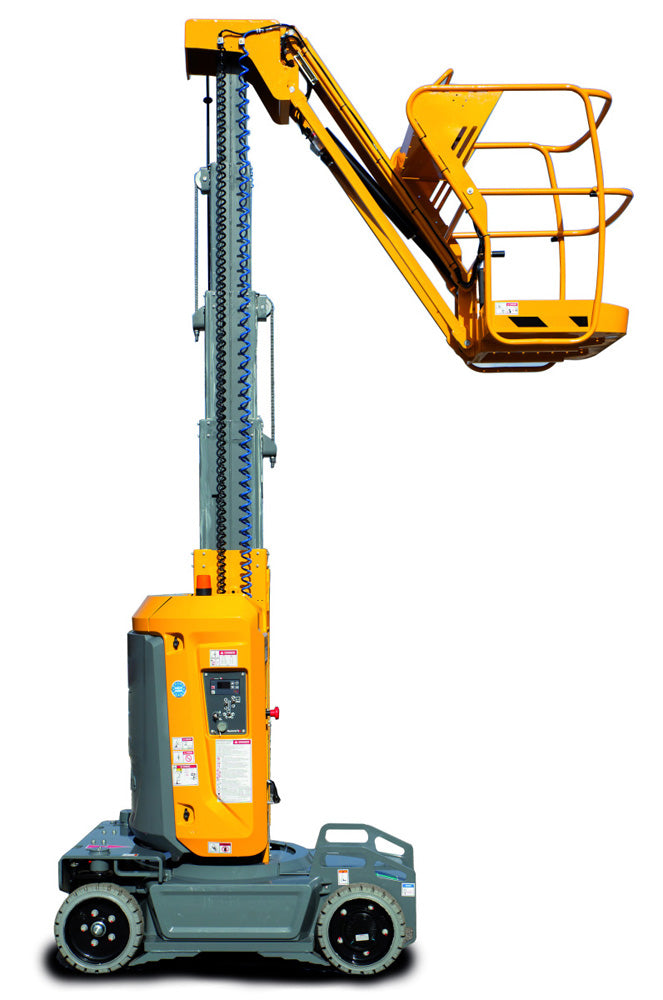

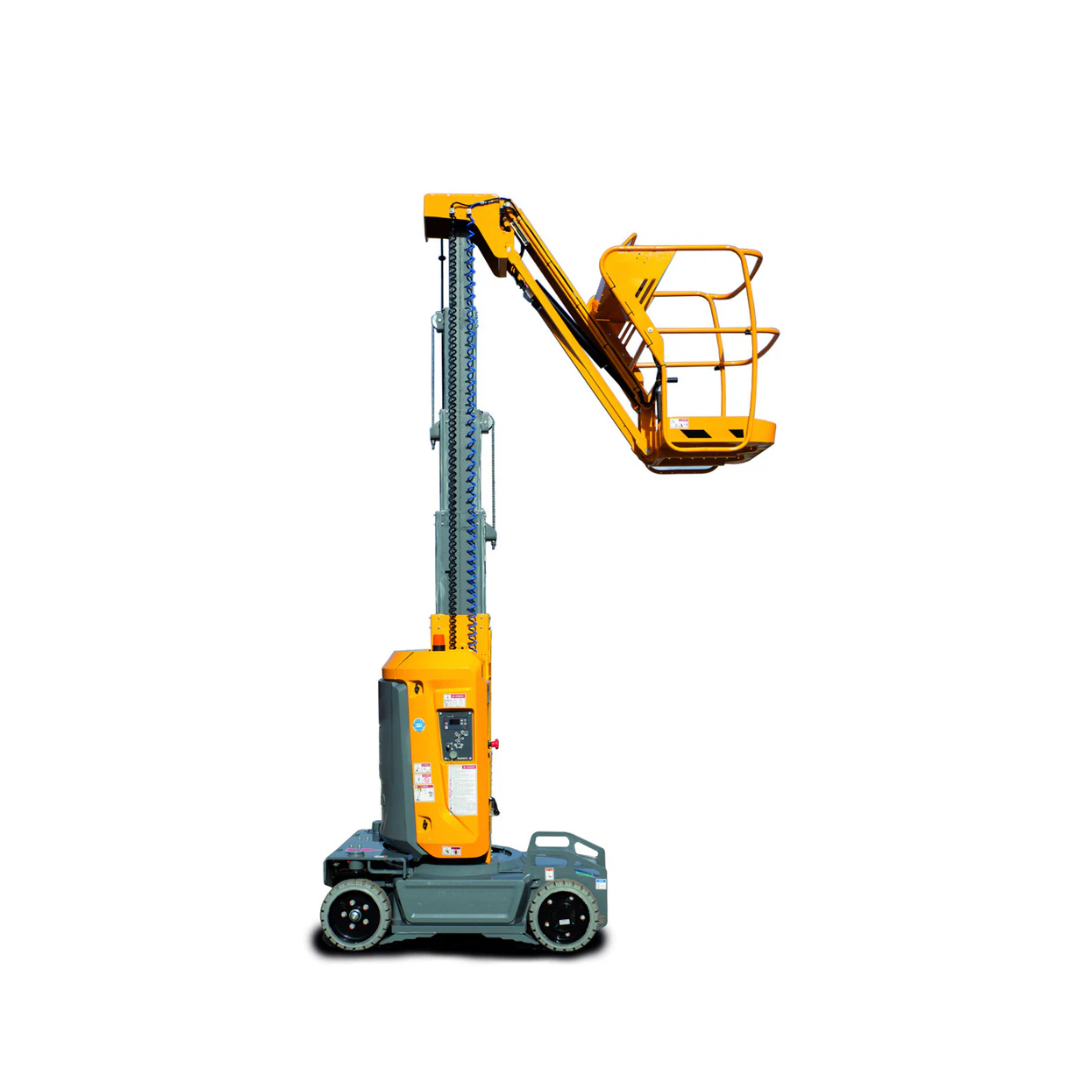

Boom Lift Hire | Electric 10M Star10: The STAR10 vertical mast lift offers optimal agility and tight turning radius making it perfect for working in confined spaces. A 3m outreach vertical jib makes it as versatile as it is agile.
|
Working height |
10 m |
| Platform height | 8 m |
| Horizontal outreach | 3 m |
| Lift capacity - inside | 200 kg (2 pers.) |
| Lift capacity - outside | 200 kg (1 pers.) |
| Platform size | 0.78 x 0,98 m |
| Length | 2.7 m |
| Width | 1 m |
| Height - stowed | 1.99 m |
| Tailswing | 0 cm |
| Wheelbase | 1.2 m |
| Ground clearance | 10 cm |
| Drive speed proportional | 0.6 - 5 km/h |
| Turning radius - outside | 1.88 m |
| Turntable rotation | 345 ° |
| Tilt alarm | 3 ° |
| Gradeability | 25 % |
| Max driveable platf. height | 8 m |
| Tyres - non marking | 16 x 5 x 10.5 |
| Power source | 24 V - 250 Ah |
| Weight | 2 677 kg |
| Vertical jib rotation | 130° (+ 70 ° / - 60 °) |
| Hydraulic system capacity | 7 l |
