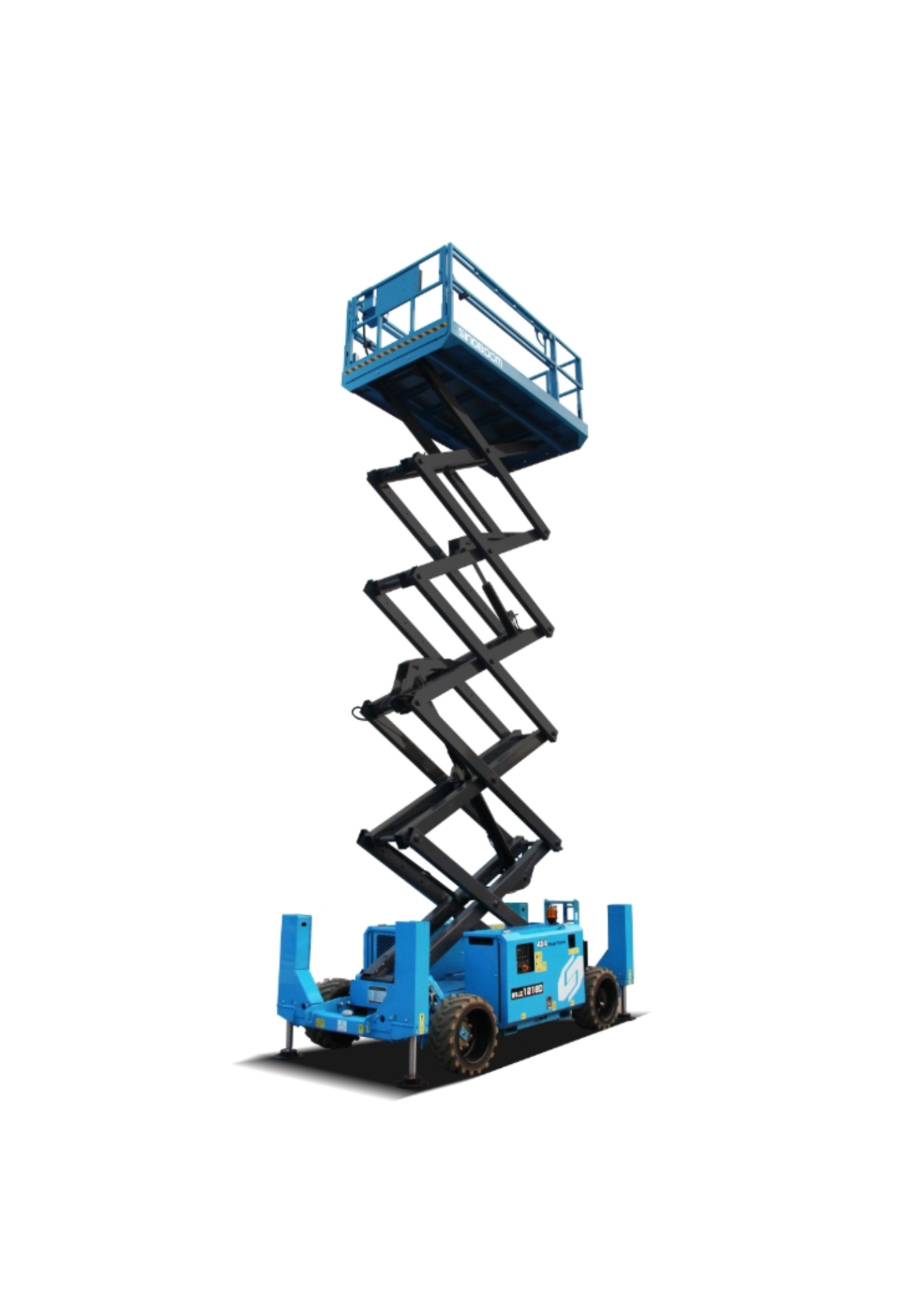

Scissor Lift Hire | Diesel 12m Sinoboom 3369RD

SKU:

Hire Terms

Standard hire: Your hire begins when you receive the equipment and is charged in 24-hour periods.

Diesel equipment: Supplied with a full tank of marked gas oil. Any fuel used will be charged at the end of the hire.

Petrol equipment: We do not store or supply petrol, so petrol equipment is supplied without fuel and no fuel charge applies.

Ending your hire: Please call us to place the equipment “off-hire”. If equipment is returned across multiple collections, each collection will be charged separately.

Diesel-powered scissor lift with dual-sided hatchback doors for quick maintenance access. Features a swing-out engine compartment, 1.6m wide platform, and one-way extension for maximum reach. One-click leveling system handles uneven surfaces with ease. Tackles steep terrain with up to 35% gradeability, delivering stable performance on challenging ground conditions.

Max Working Height	12m
Max Platform Height	10m
Max Horizontal Extension	1.5m
Length-Stowed (Outriggers/Without)	3.8m / 3.19m
Width-Stowed	1.78m
Height – Stowed (Rail Folded)	1.94m
Height – Stowed (Rail Unfolded)	2.56m
Wheelbase	2.28m
Ground Clearance	0.22m
Platform Dimensions (L×W×H)	2.8m×1.6m×1.1m
Platform Allowable Occupants (Indoor)	4 persons
Platform Allowable Occupants (Outdoor)	2 persons
Platform Capacity	450kg
Drive Speed-Stowed	5.6km/h (3.5mph)
Drive Speed-Raised	0.48km/h (0.3mph)
Elevation Time (Unloaded)	42s～52s
Descent Time (Unloaded)	40s~50s
Gradeability	35%
Turning Radius (Inside/Outside)	2.11m / 4.6m
Tilt Rating (Front to Back)	3°
Tilt Rating (Side to Side, Outrigger Tele-In/Tele-Out)	2° / 0.8°
Max Outrigger Leveling (Front to Back)	5.3° (front) / 4.2° (back)
Max Outrigger Leveling (Side to Side)	11.7°
Tyres – solid	26×12-16.5/Solid
Power Source	Kubota D1105-E4B-EU-X1
Drive Mode	4WD×2WS
Fuel Tank Capacity – Diesel	48L
Hydraulic System Capacity	72L
